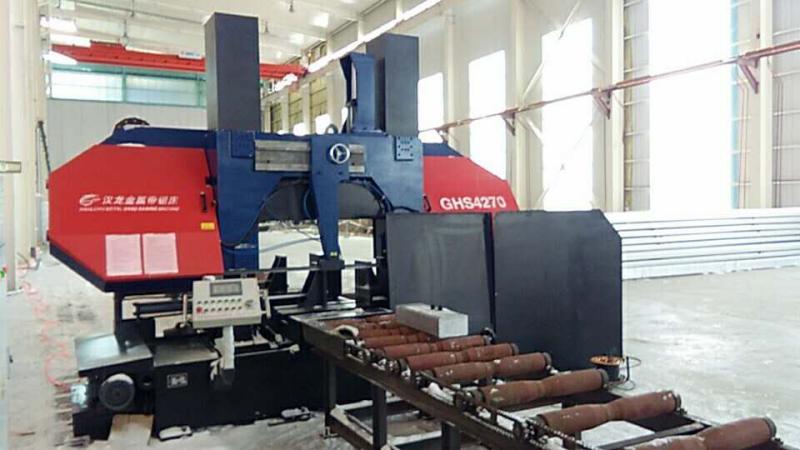

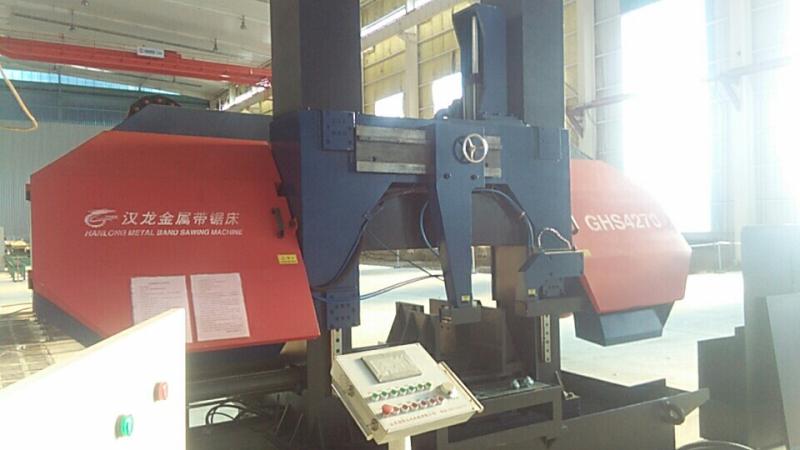

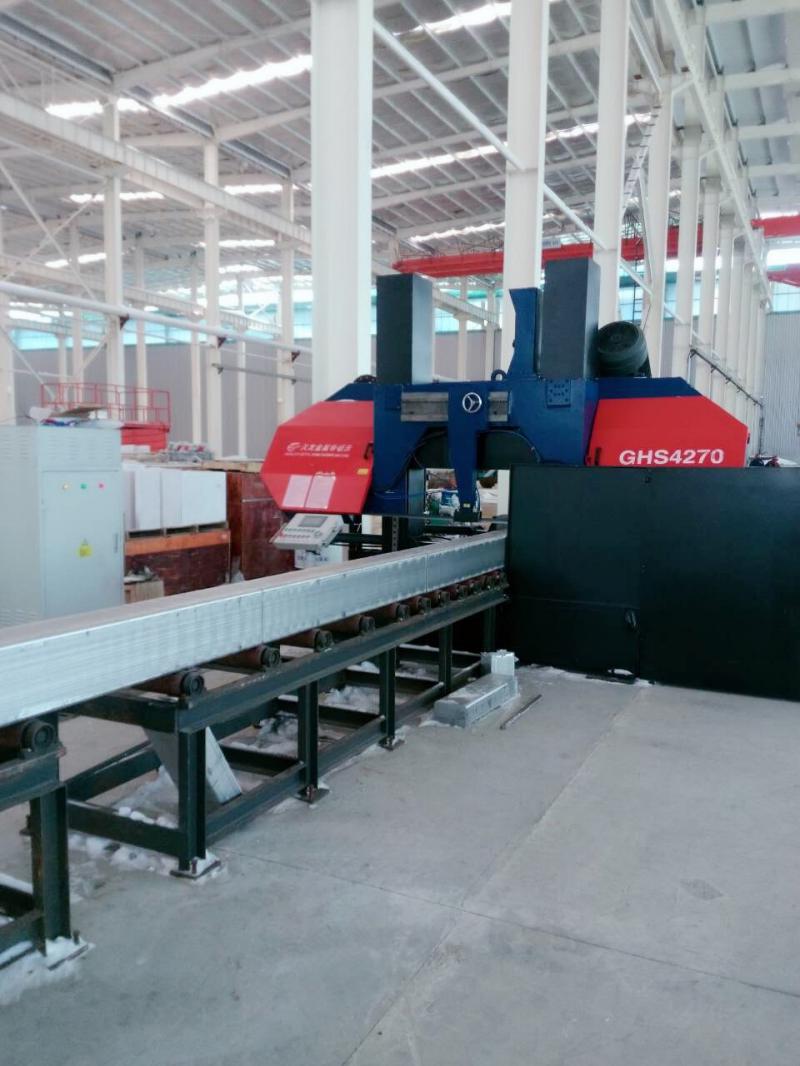

GHS4270 High speed Band Saw Machine

Technical parameters and configuration of high-speed aluminum band sawing machine

Main description of the machine tool:

High speed aluminum band sawing machine adopts double column gantry frame structure and super rigid saw frame. The main parts of the machine tool are produced by imported CNC machining centers. It is characterized by high reliability, high efficiency, high precision, convenient operation, etc.

Main features of the machine tool:

1. The machine tool has the functions of automatic feed, cutting and automatic stop of belt breaking through the cooperation of machinery, electricity and hydraulics.

2. Its sawing speed and feed speed can be adjusted steplessly within the given range.

3. The sawing speed is controlled by vector frequency converter, which is convenient for adjustment and control.

4. Hydraulic automatic tensioning saw band, convenient operation and good stability.

5. The machine tool adopts the oil mist lubrication function to effectively solve the high speed operation and heating of the saw blade, and the sawtooth stickiness improves the durability of the saw blade and the cleanliness of the environment.

6. The oil cylinder is used for the lifting and lowering of the saw frame, which is the main moving part. The saw frame moves up and down along the linear guide rail pair under the traction of the oil cylinder.

7. The machine tool oil tank is equipped with a temperature control system, which can automatically heat and dissipate heat.

Main technical parameters of the machine tool:

1. Maximum sawing range (length x width) ：700 × 700 mm

2. Band saw blade specification (width * thickness * length)： 41 × one point three × 8775 mm

3. Sawing speed ：300-2000 m/min

4. Hydraulic stepless speed regulation of feed speed

5. Main motor power ：37 kw

6. Inverter power ：37 kw

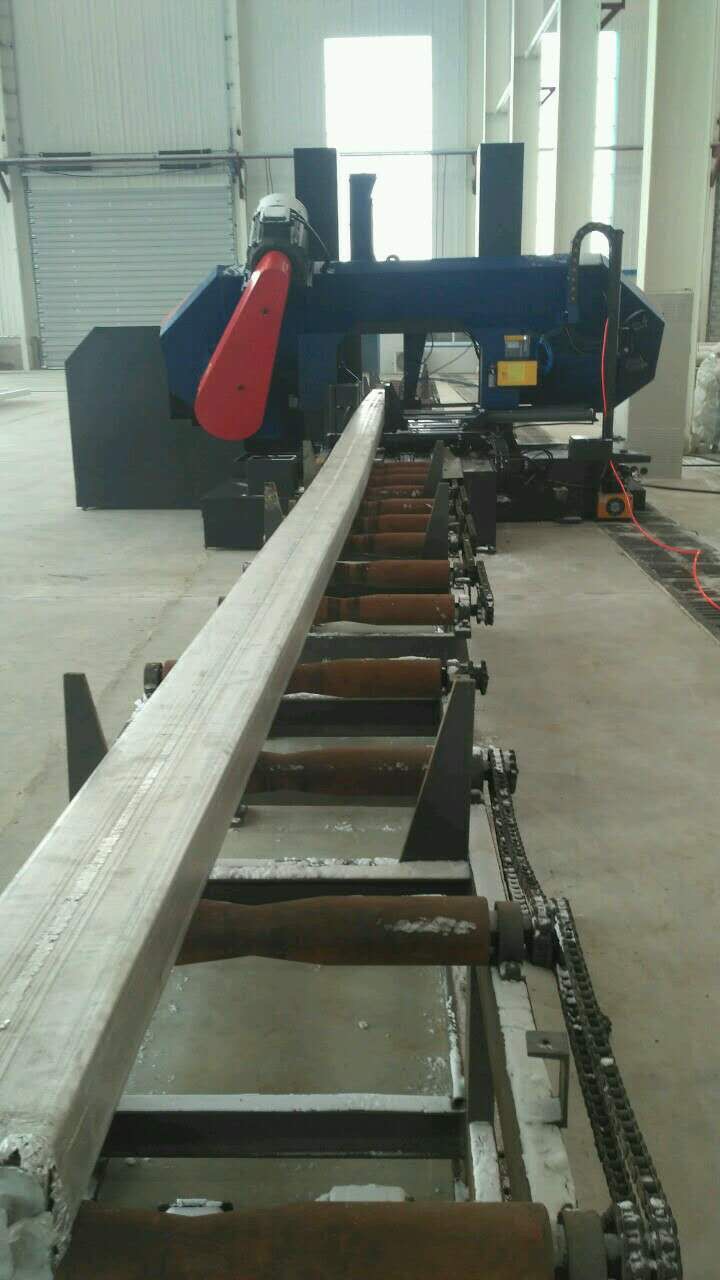

7. One feeding length： 1000 mm

8. Fuel tank capacity： 80 L

9. Saw belt tensioning mode： Hydraulic tensioning

10. Oil pump motor power： 2.2 kw
