Project list:

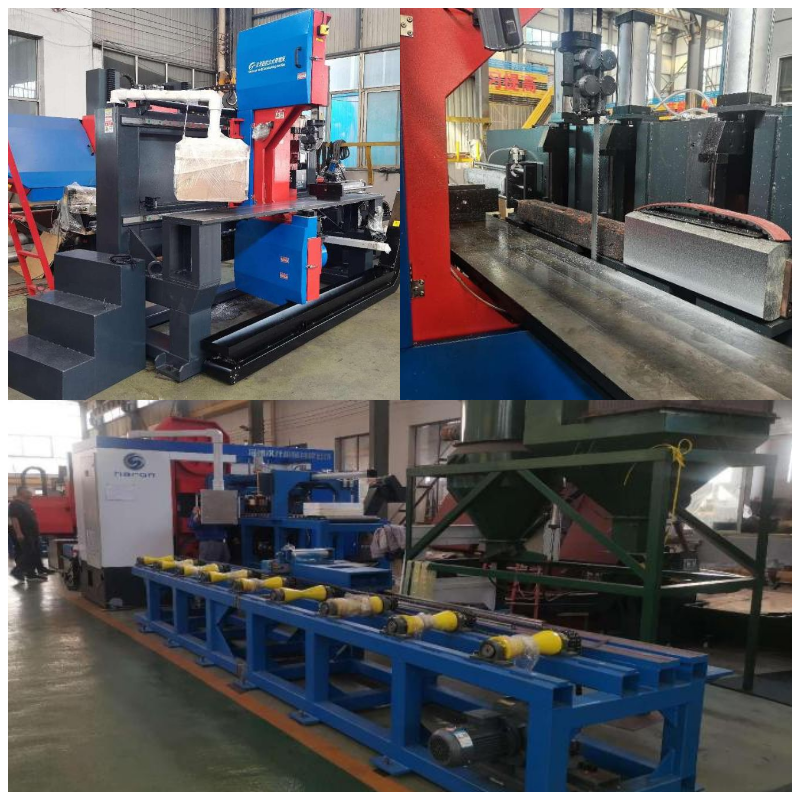

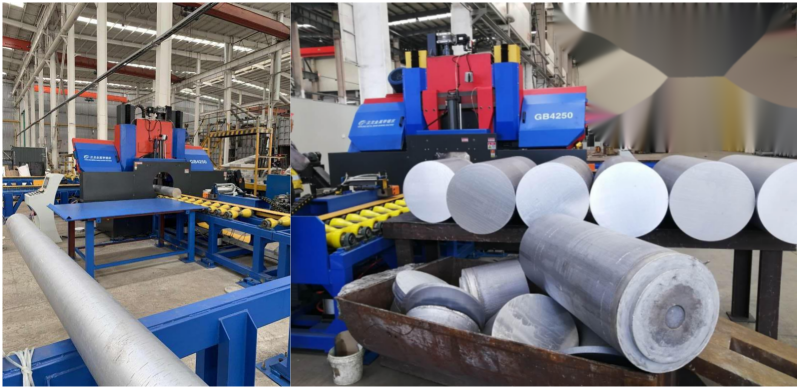

1. Large diameter aluminum bar high-speed  band saw production line:

This band saw unit has the functions of upper storage rack, feeding roller table, positioning conveyor, sawing host, blanking roller table, tail collection device, aluminum scrap collection system, and also can be configured with laser coding and truss stacking.

The unit is characterized by high sawing efficiency, narrow sawing cut, less material loss (sawing gap<2mm), fast sawing speed and good stability.

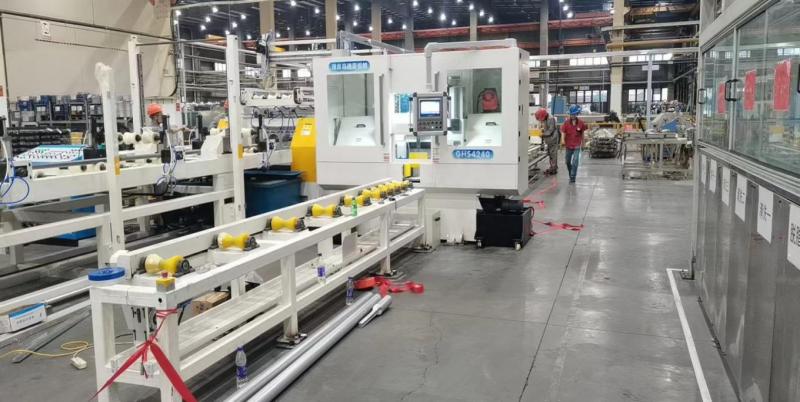

2. High speed band saw production line for aluminum tube cutting;

The automatic cutting line for aluminum pipe customized for the joint venture, and the synchronous cutting line customized according to the user's pipe cutting requirements and the production rhythm of the drawing machine.

3 Aluminum bar multi bar sawing vertical band saw:

Applicable to aluminum plate and φ Cutting of multiple aluminum bars below 200. High efficiency, the biggest advantage is material saving. The saw blade thickness is 1.1mm, and the saw seam is ＜ 2mm. Maximum cutting range: travel 1500mm, throat depth 350mm, high speed 350mm. Sawing tangent speed: 500-2200m/min.

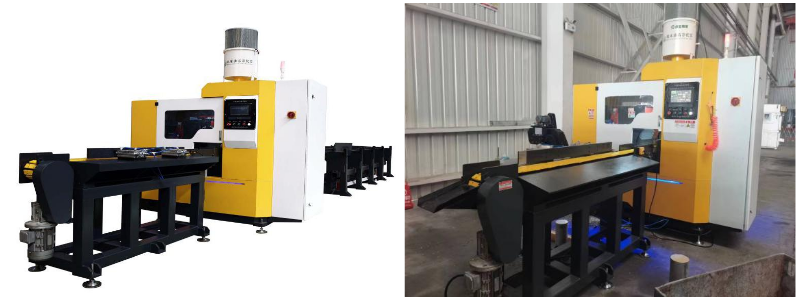

4: High speed aluminum bar circular saw cutting line (applicable to φ High speed cutting of aluminum bars below 230)

High precision: self-developed spindle, precision 0.01mm,

Material saving: more than 1mm thinner than the saw blade in the same industry。

Mirror cut surface: material surface is smooth and clean, and the roughness is within Ra3.0

High efficiency: rapid capacity improvement.

Safe production and environmental protection: fully enclosed shield+micro lubrication of saw blade, sound and noise reduction.
