Hi-speed band saw for aluminum tube cutting

Main components and operating instructions

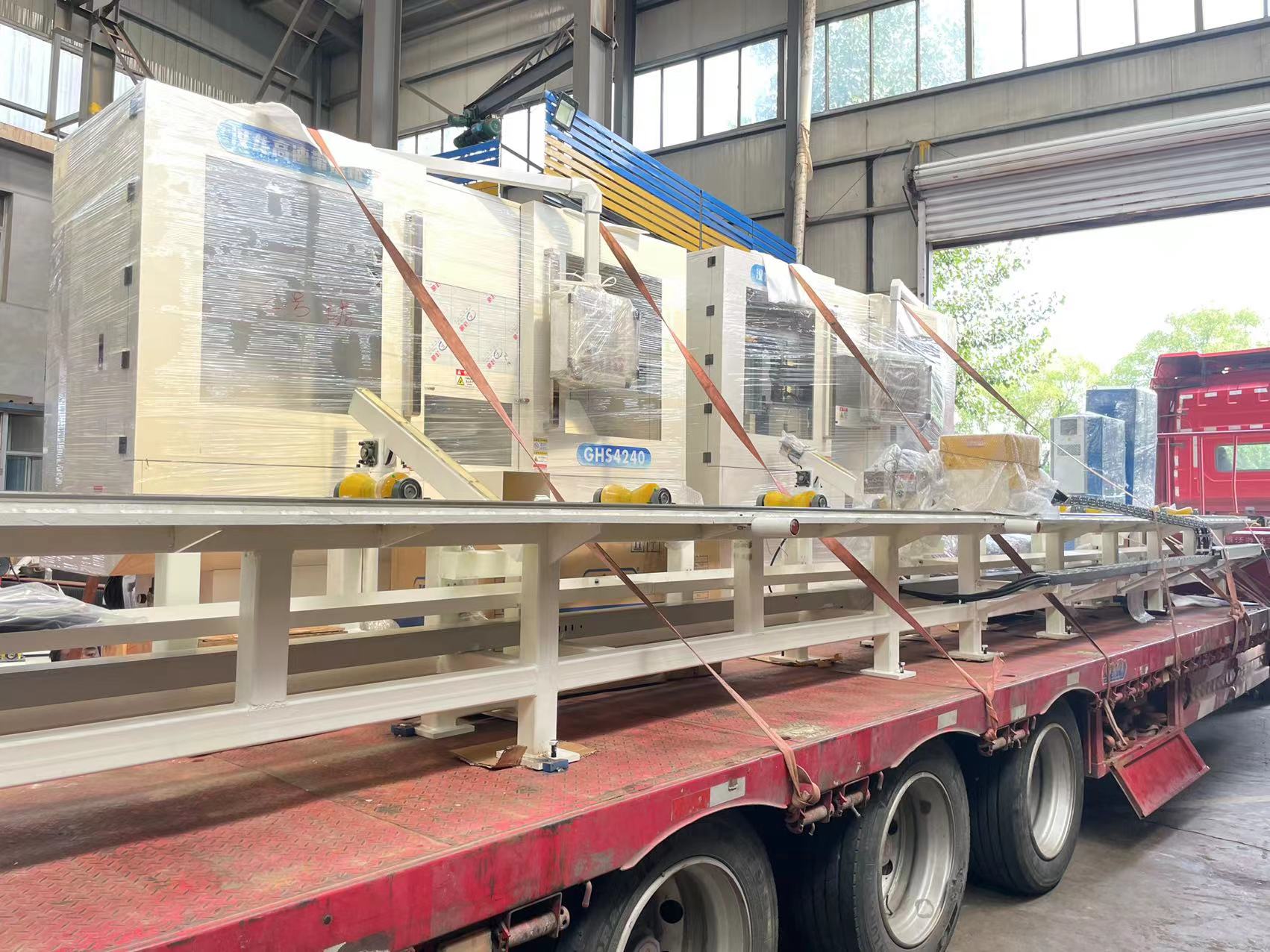

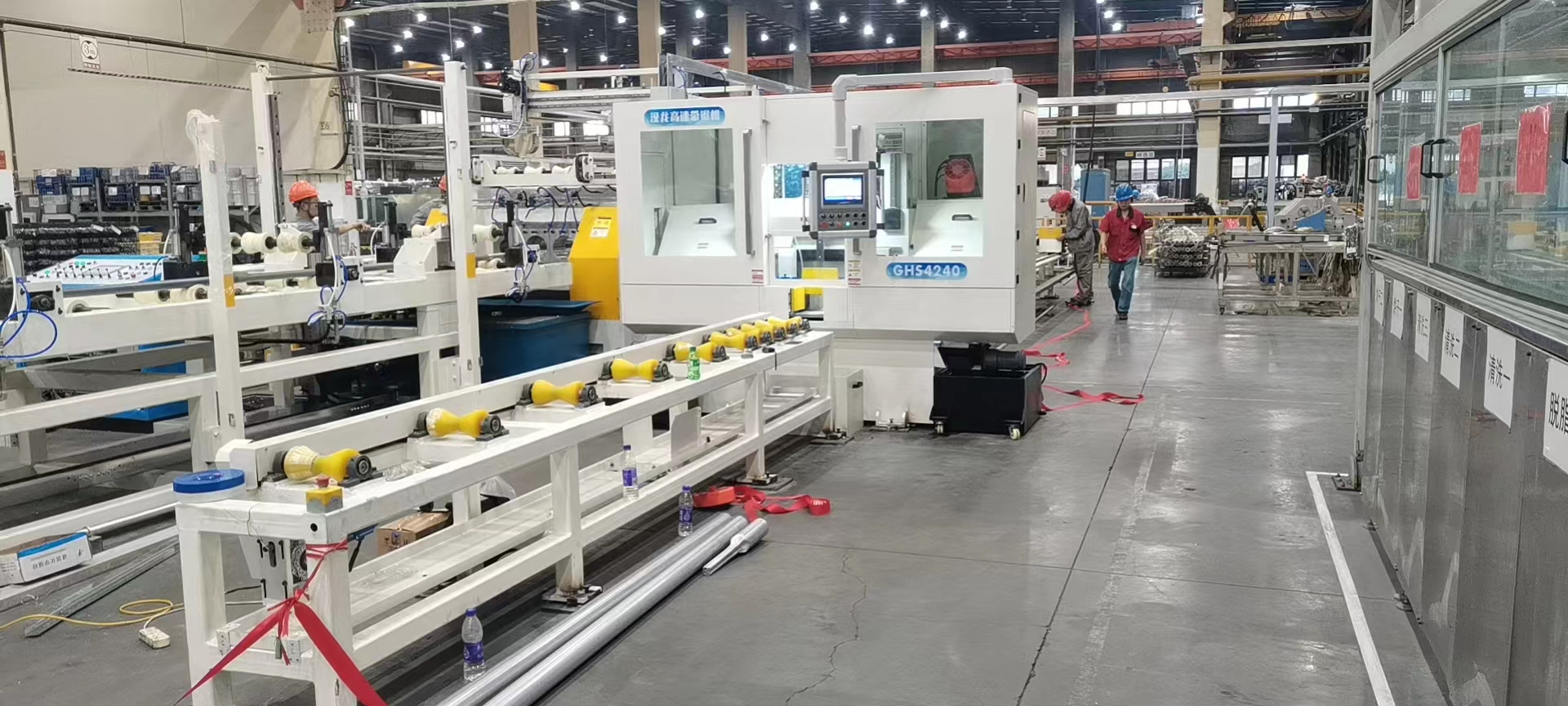

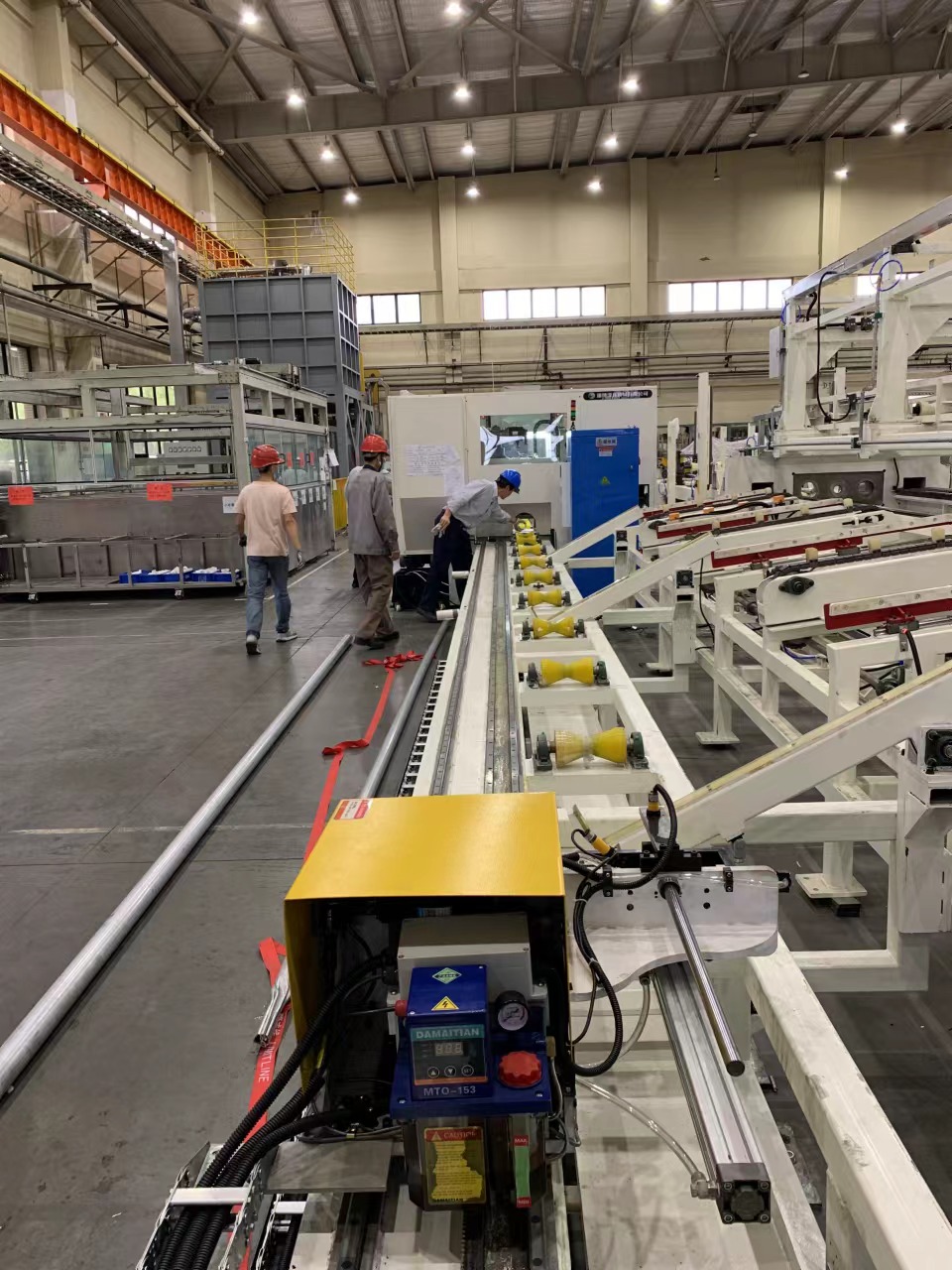

1. The unit is composed of the sawing machine host, hydraulic station, electric control cabinet, automatic chip removal machine, aluminum chip collection box, lifting and feeding device, front material frame, fixed length trolley mechanism, rear discharge frame, full protective cover of the sawing machine host, etc.

2. Main parameters of the machine tool:

1) Maximum sawing capacity: ￠ 400mm

2) Band saw blade specification: L5550 × W34 × T1.1mm (cemented carbide/bimetal)

3) Saw belt tension mode: hydraulic tension/relaxation

4) Blank precision after sawing: ± 1mm

5) Sawing feed speed: 100-1500 mm/min (servo speed regulation)

6) Feed drive: servo motor+reducer+ball screw drive

7) Saw blade linear speed: 300-2000 m/min (servo stepless speed regulation)

8) Main motor power: 11kw (spindle servo)

9) Clamping method: centering and clamping (SMC cylinder)

10) Control system: 11kw (spindle drive)

11) Saw edge width: ≤ 1.8mm

12) Verticality of cutting surface: ＜ 2mm

13) Sawing cooling mode: cutting fluid cooling

14) Operation noise: ≤ 75 dB

15) Touch screen: Huichuan

16) PLC: Mitsubishi

17) Lifting servo motor: Huichuan

18) Oil pump flow: 12 L

19) Oil pump motor: 1.5kw

20) Unit floor area: L15.4m × W3 m
