GHS4232 High speed Band Saw Machine

Hotline： +86-533-5333776

Product Description

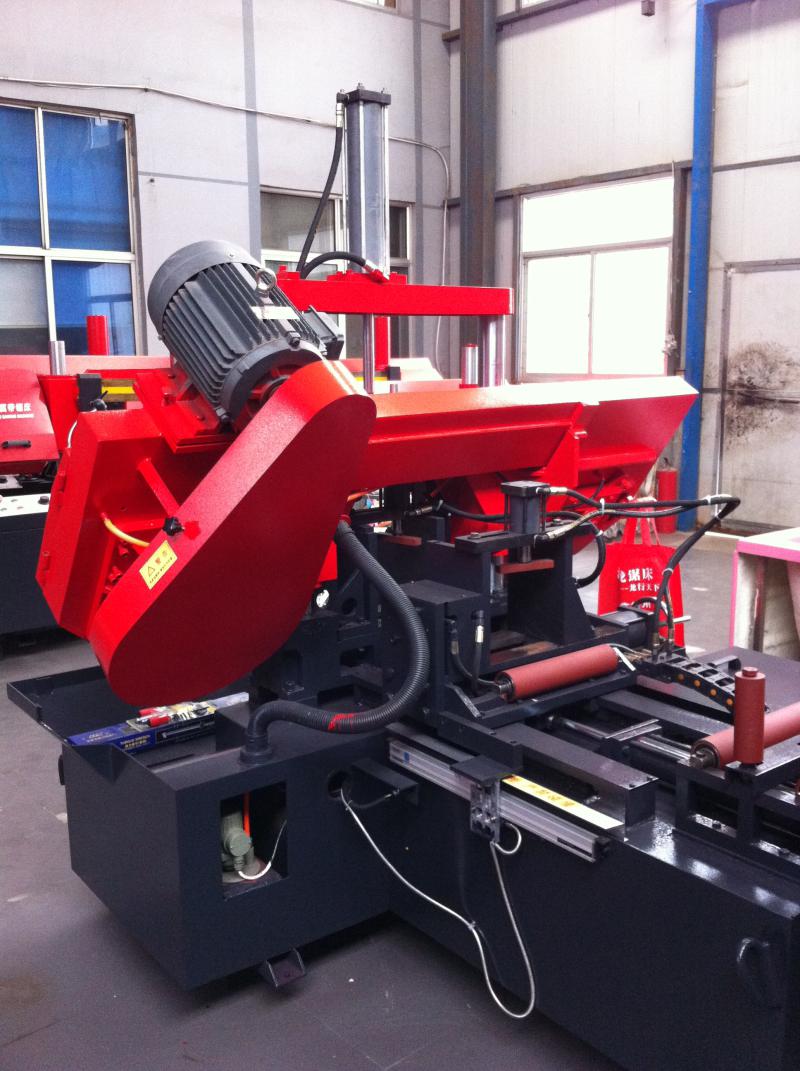

Special aluminum cutting CNC gantry sawing machine GHS4232

Saw frame is integrally cast and processed in one time

The sawing machine adopts hydraulic feeding, grating ruler and PLC positioning structure,the saw frame adopts double cylinder guide, with good sawing stability. It can be re cut and cut at high speed, and the service life of the saw blade is longer.

The control panel adopts the human-machine interface, and the sawing parameters are set digitally. The automatic and manual switching is simple and fast.

The equipment has the advantages of high sawing precision, strong rigidity, good stability, small sawing seam, material saving, etc.

Main technical parameters of the machine tool:

1.	Maximum sawing range	φ320㎜
2.	Saw blade specification	4115270.9mm
3.	Saw blade linear speed	50-600m/min（Variable frequency control）
4.	Feeding speed	hydraulic stepless
5.	Main motor	5.5 KW
6.	Hydraulic motor	1.1 KW
7.	Blade cooling	oil mist cooling system
8.	Clamping type	hydraulic single side
9.	Motor power of oil pump	1.1kw
