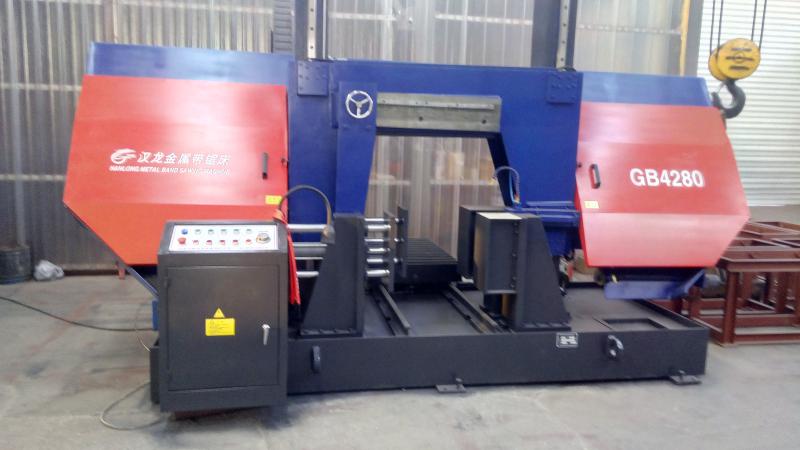

GB4280 High speed Band Saw Machine

Hotline： +86-533-5333776

Product Description

Technical Parameters ForGB4280 Aluminum Band Sawing Machine

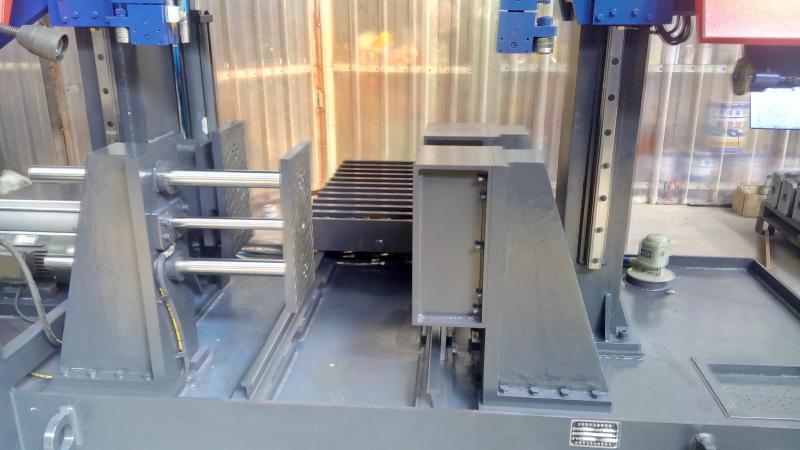

The sawing machine is guided by square column gantry type linear rail. The frame type saw frame structure, which is the first in China, and the guide column at the center of the sawing machine make the sawing force point more reasonable. The sawing stability is good, the efficiency is high, and the saw blade is saved.

Detailed list of equipment technical configuration:

S/N Item GB4280 Parameters

16 4231 × two thousand two hundred and thirty × two thousand and six hundred

17 8T

19 Machine weight (T): about 8T

Serial No	project	GB4280parameter
1	Max. sawing range (high × Width) 810 × 810mm	810×810mm
2	Specification of saw band (length × wide × Thickness	9520×54×1.6mm
3	Saw band speed (m/min)	frequency conversion, stepless speed regulation 30-1500
4	Feed speed (m/min)	hydraulic stepless speed regulation
5	Feeding moving speed (m/min)	oil cylinder drives the small pulley, back feeding and front discharging
6	Main motor power (KW) 15KW	15KW
7	Hydraulic motor power (KW) 4KW	4KW
12	Band tensioning	hydraulic pressure
16	Overall dimensions of machine (mm)	4231×2230×2600
17	Maximum bearing of machine tool (T)	8T
19	Overall weight	约8T
