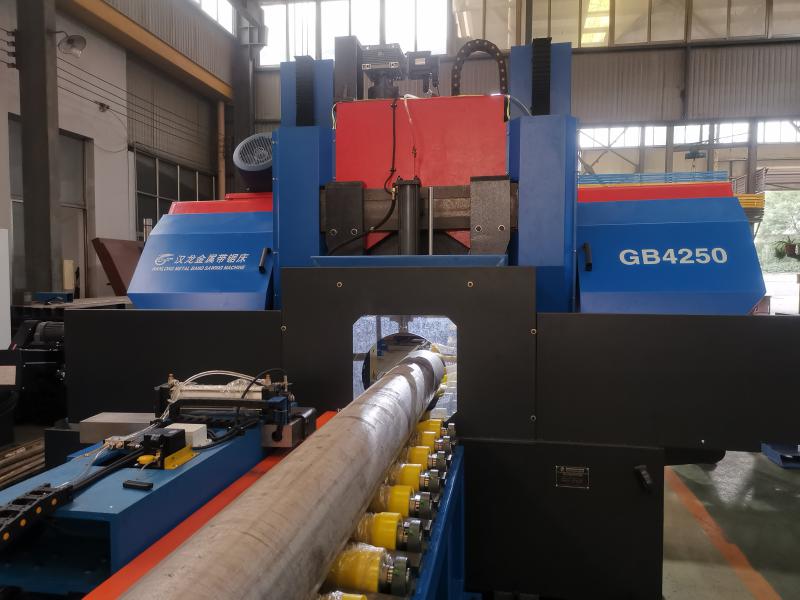

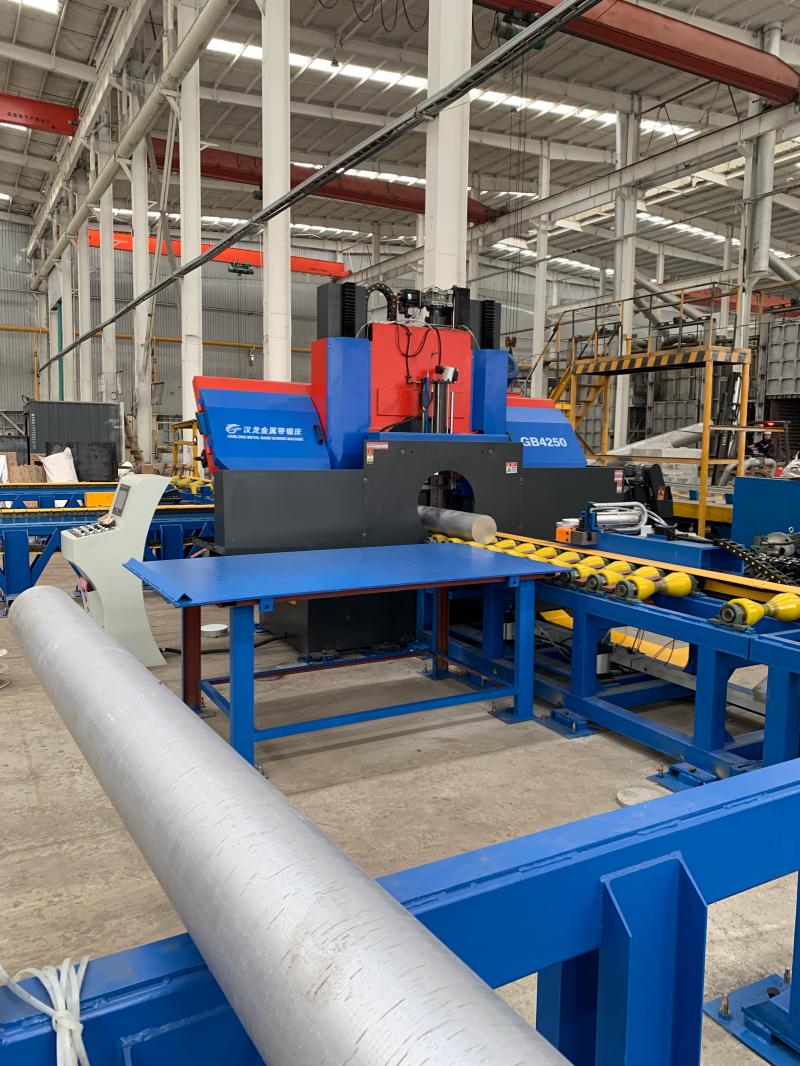

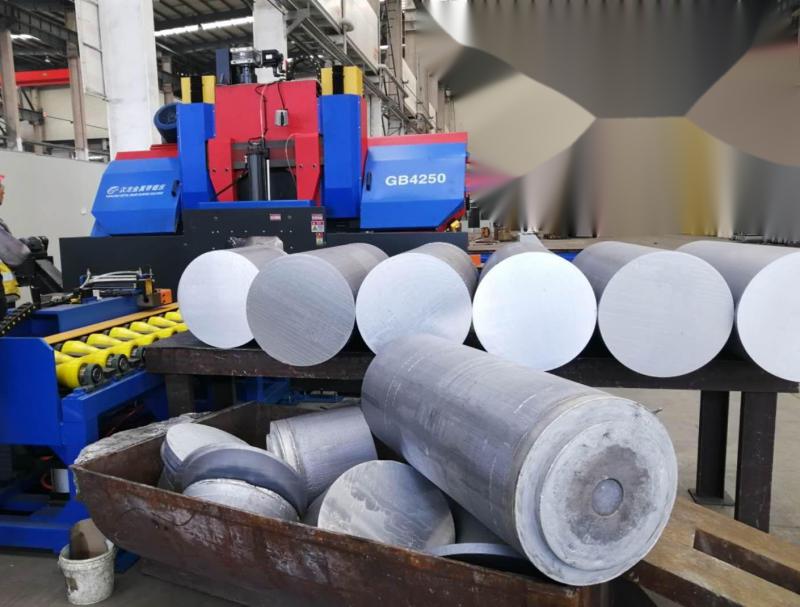

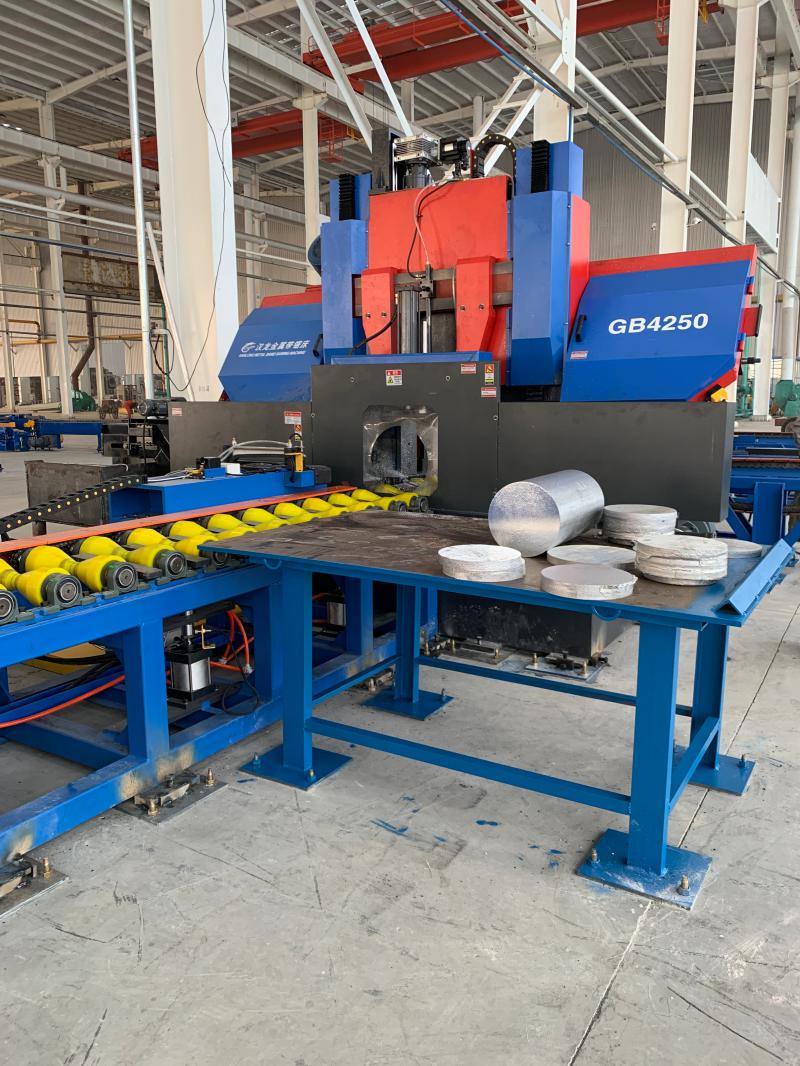

GB4250 High speed Cutting Line

Main features of the machine tool:

1. The machine tool has the functions of automatic feed, cutting and automatic stop of belt breaking through the cooperation of machinery, electricity and hydraulics.

2. Its sawing speed and feed speed can be adjusted steplessly within the given range.

3. The sawing speed is controlled by vector frequency converter, which is convenient for adjustment and control.

4. Hydraulic automatic tension saw band, convenient operation and good stability.

5. The pressure of front and rear clamping jaws can be adjusted to prevent clamping deformation of profiles.

6. The machine tool adopts the oil mist lubrication function to effectively solve the high speed operation and heating of the saw blade, and the sawtooth stickiness improves the durability of the saw blade and the cleanliness of the environment.

Main technical parameters of the machine tool:

1. Maximum sawing range (length x width) 500 × 500 mm

2. Band saw blade specification is about 7395 (length * width * thickness) × one point one × 34mm

3. Cutting speed 300-2000 m/min

4. Hydraulic stepless speed regulation of feed speed

5. Main motor power 11 kw

6. Inverter power 11 kw

7. Fuel tank capacity 80 L

8. Saw band tensioning mode Hydraulic tensioning

9. Oil pump motor power 2.2kw
