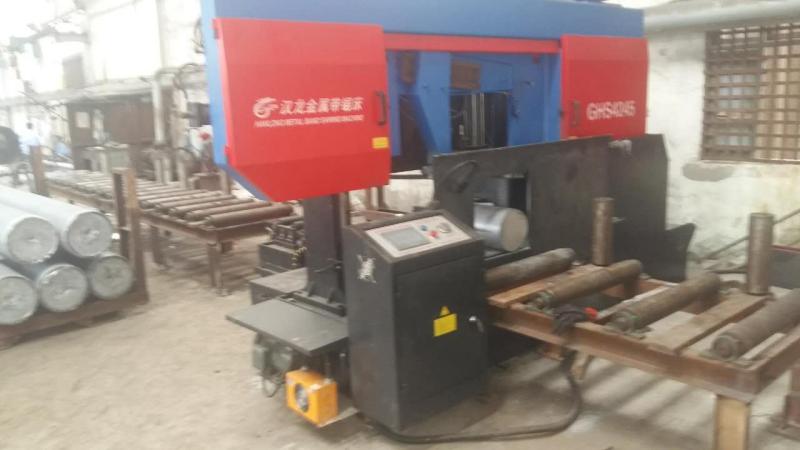

GB4245 High speed Band Saw Machine

This machine tool adopts double column gantry frame structure, and the super rigid saw frame and guide column are more reasonable for sawing the stress point at the center of the saw frame. The feed of the single cylinder hydraulic automatic lifting saw frame solves the problem that the dual cylinders of the traditional sawing machine are used asynchronously for a long time.

Maximum sawing range (length x width) 450 × 450 mm

Single feeding stroke: 500 mm

Band saw blade specification (width * thickness) 34 × 1.1 mm

Sawing speed 300-2000 m/min

Hydraulic stepless speed regulation of feed speed

Main motor power 11 kw

Saw belt tensioning mode Hydraulic tensioning

Pump motor power 120 W

Oil pump motor power 4 KW
