GB4240 High speed Cutting Line

This high-speed aluminum cutting production line is a special sawing machine developed by Hanlong for high-speed sawing of aluminum bars and profiles. It can greatly improve production efficiency and reduce costs with the full automatic feeding, sizing, cutting and other functions. It is the preferred solution for cutting large diameter aluminum bars and large section profiles.

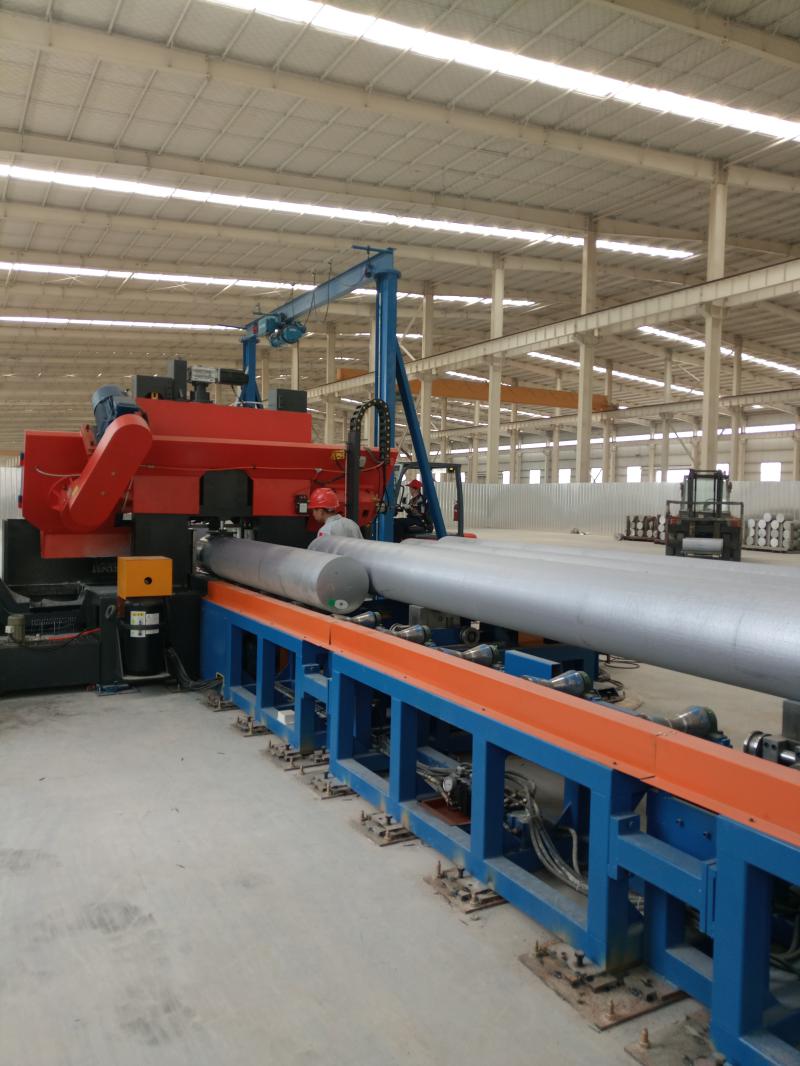

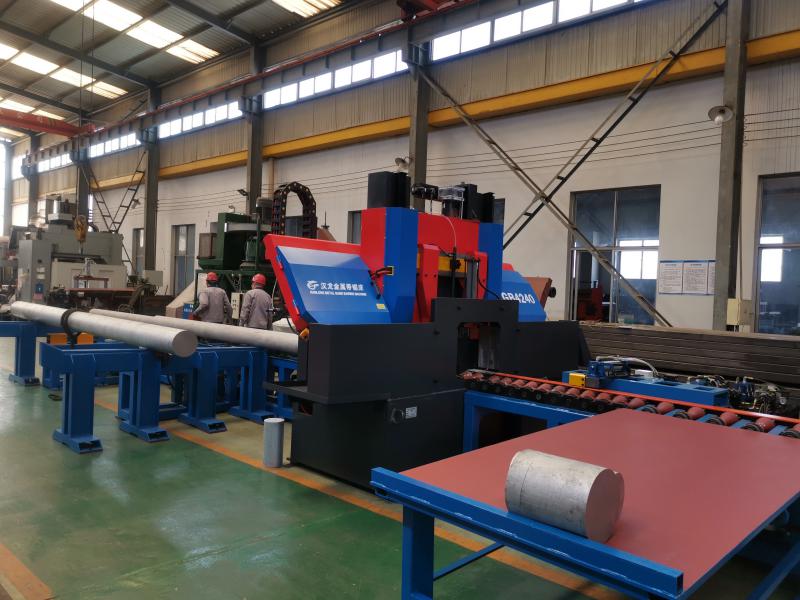

Main components of the production line

1.Sawing machine part

2. Lifting mechanism part

3. Feeding part

4. Power material rack and sizing part

5. Blanking platform

6. Hydraulic part

7. Electrical control unit

8. Finished material lifting mechanismMain features:

Main features:

High efficiency:

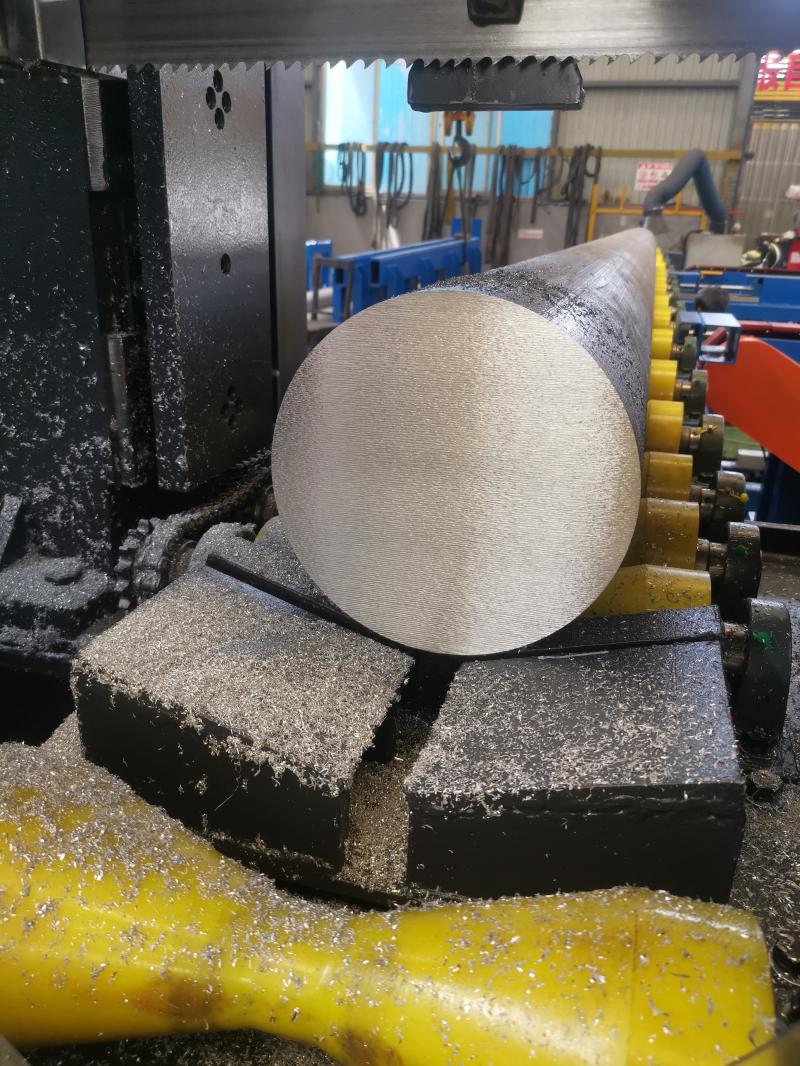

The cutting speed of the sawing machine is 300-2000m/min, and the sawing seam is ≤ 2mm.

Reliability:

1. The machine tool structure is a saw frame type integral casting structure. The machine body is processed by the machining center once after aging treatment, which can ensure the stable operation of the machine tool.

2. High degree of automation: automatic feeding, automatic positioning, automatic sawing and automatic discharging.

3. The lifting guide of the saw bow is "H-shaped" cast iron double column+roller type linear slide rail, which improves the stability and accuracy of sawing.

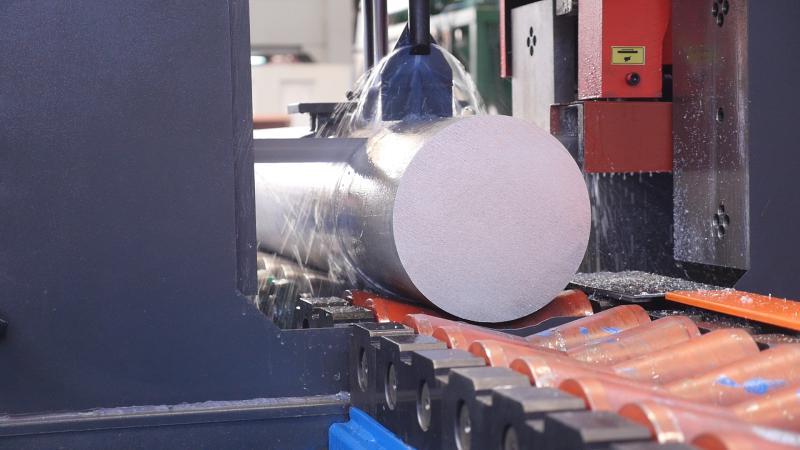

4. The saw blade cooling system can realize the exchange of oil mist cooling and cutting fluid cooling to meet the different requirements of surface roughness.

Precision:

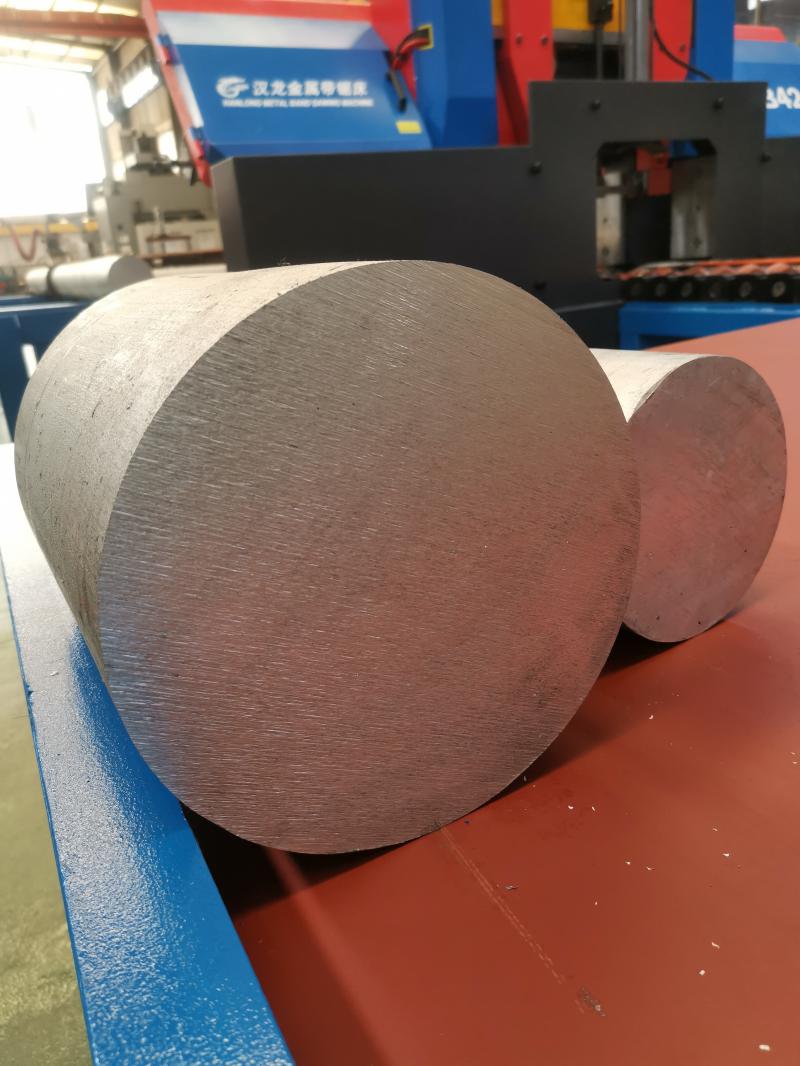

The sawing feed adopts servo motor to drive the ball screw, the lifting guide adopts precision linear guide rail, and the balance cylinder stability system is added, so the stable cutting force is strong. Ensure the accuracy of the finished product is ± 0.2mm.

Low cost:

1.The speed regulating system of the sawing machine adopts the large torque, programmed control motor and reducer independently developed and customized, which is characterized by high efficiency, low energy consumption, flexible control, etc., and can save 30-40% electricity compared with the traditional sawing method.

 2. The specially designed supporting and guiding mechanism is adopted for the saw blade guidance to ensure the accuracy and maximize the service life of the saw blade.

good service:

Establish equipment parts warehouse and prepare goods for a long time to ensure fast delivery and normal production of customers.
