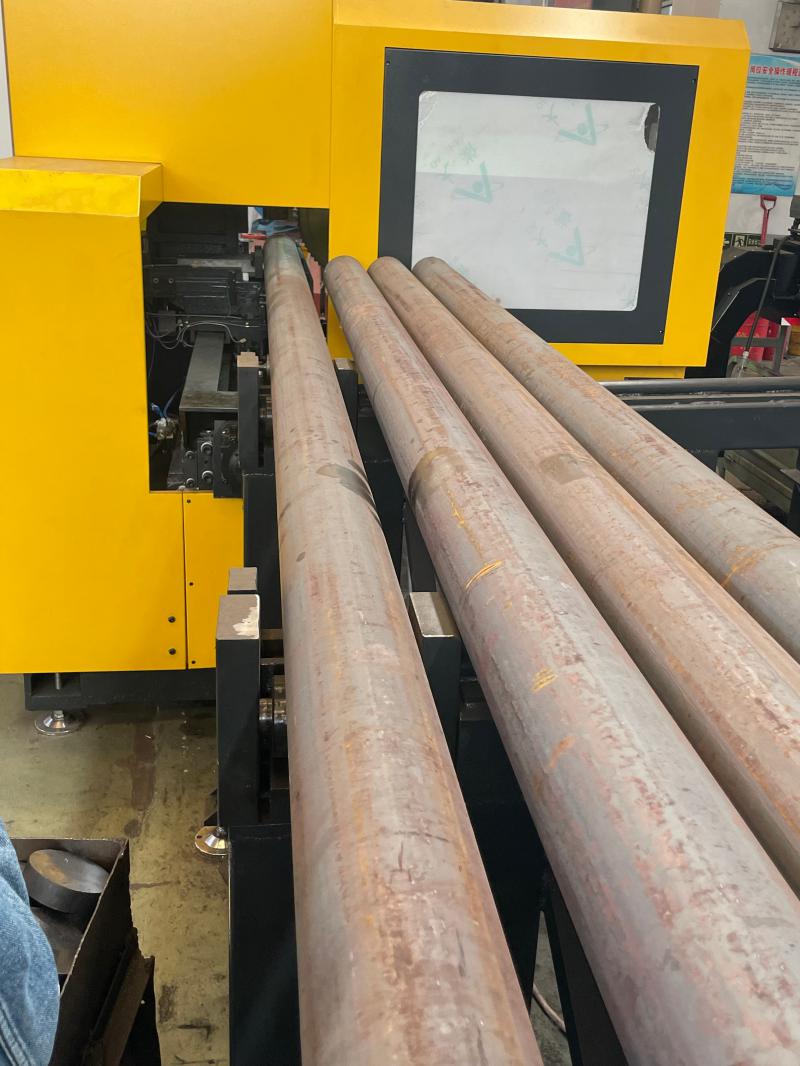

CNC-250 High speed Metal Circular Saw Machine

Sawing range

mm

Round  120-250

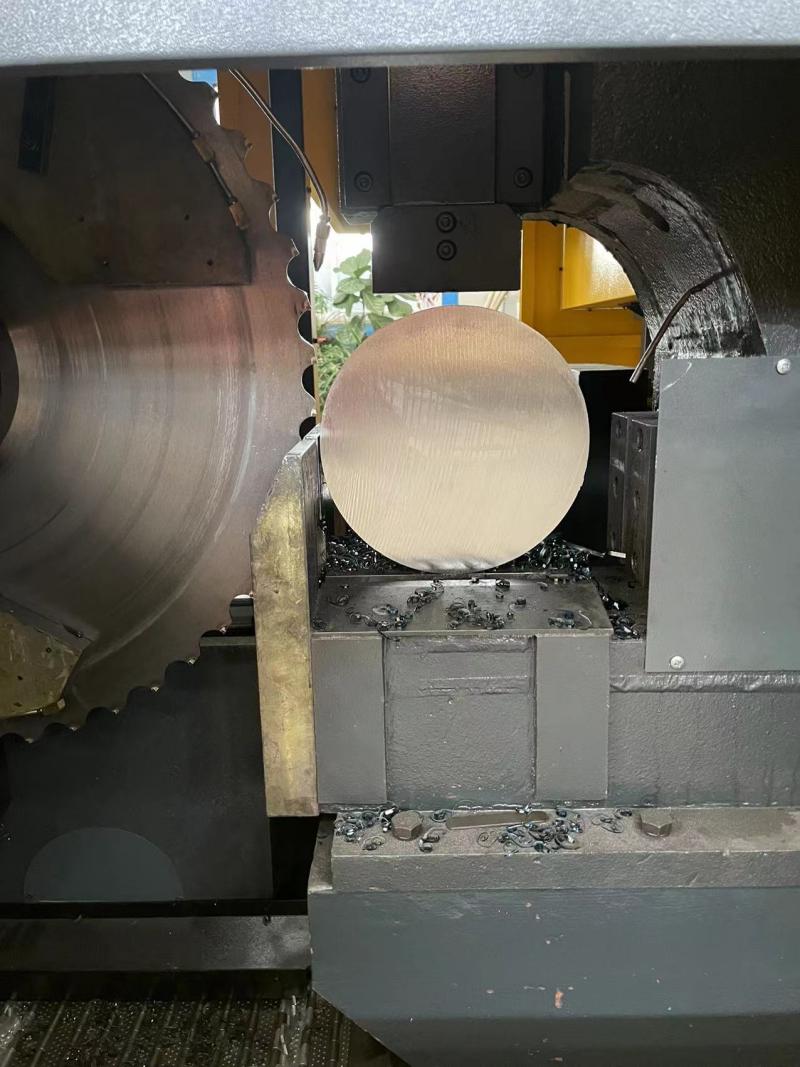

Carbide circular saw blade

mm

Φ750xφ80xt4

Spindle motor

Kw

37

Spindle speed

Rpm

30-70

Cut feeding mode

AC servo+ball screw

Main clamp mode

 Hydraulic/ vertical and horizontal clamping each

Saw blade debris removal device

 Passive/active round wire brush

Gear gap compensation

Magnetic powder brake

Feeding drive mode

AC servo motor+ball screw

Feeding clamp mode

Hydraulic type Ι Horizontal clamping

 Front end removal length

mm

20-30 (no cutting head is optional )

Remaining length of tail

mm

150+ α （ α Not enough cutting length of one workpiece)

Single feeding cut length

mm

20-700

Allowable placing length

mm

3000-6500

Hydraulic drive motor

Kw

5.5

Hydraulic oil capacity

L

200

Body weight

Kg

9200
