Product Description

Equipment description

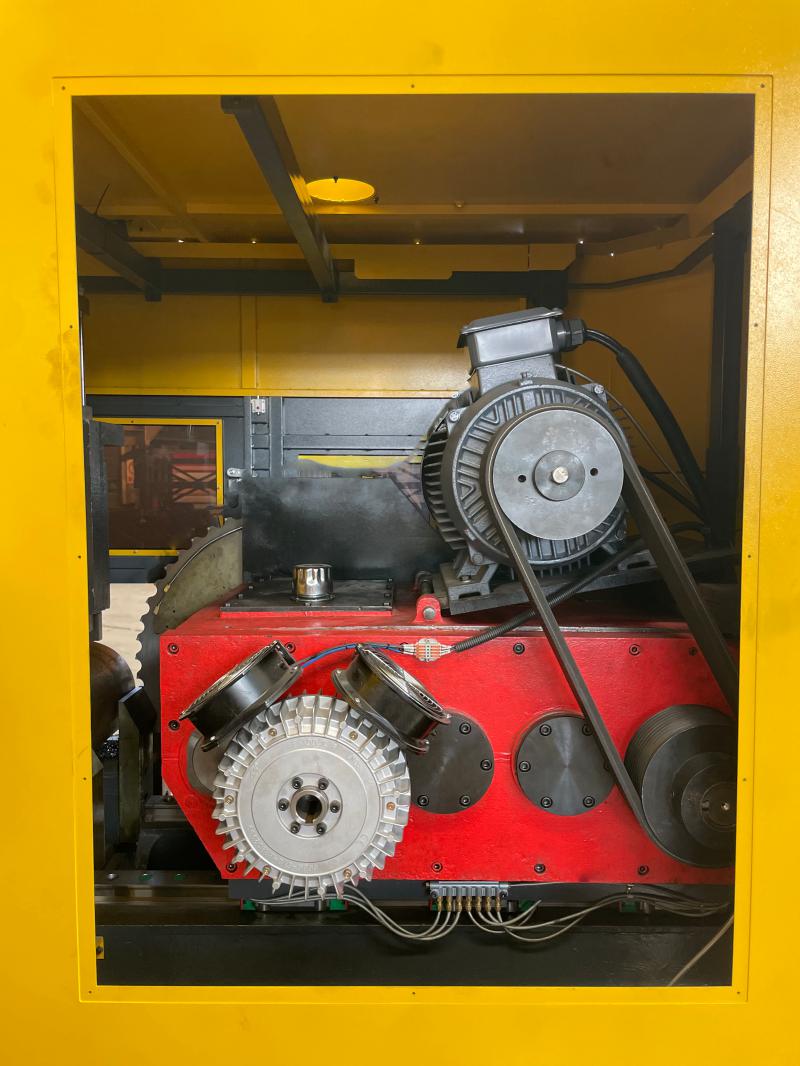

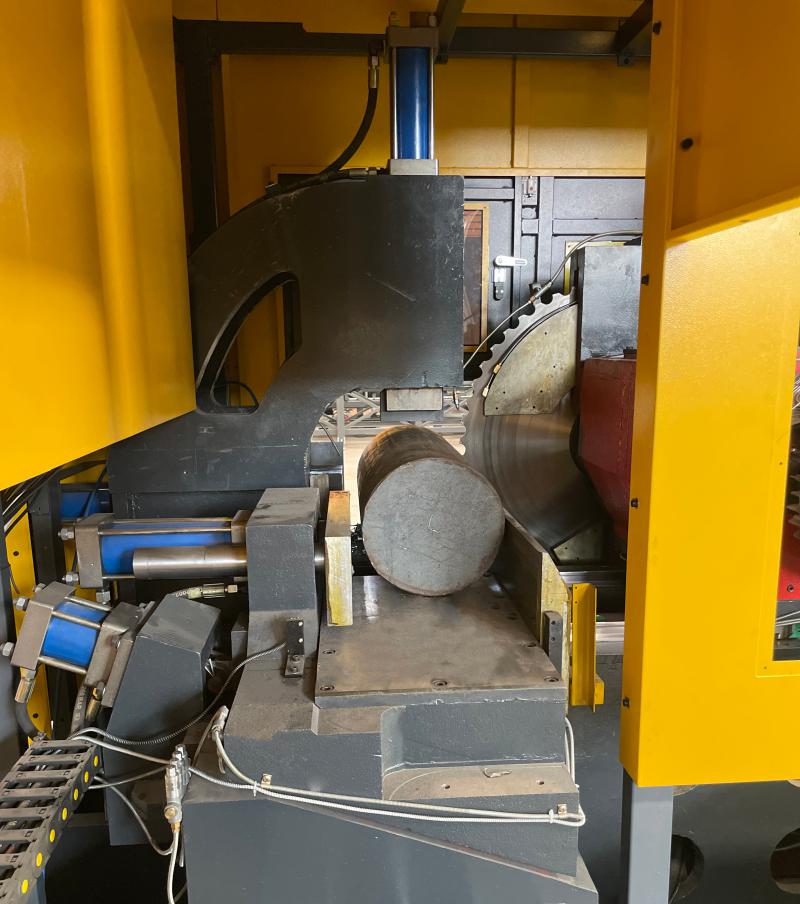

The CNC - 200 oblique push cutting circular saw is mainly composed of machine bed, power head, feeding system, clamping device, automatic feeding, material bearing frame, hydraulic system, electrical system, spray cooling system, saw blade automatic lubrication system, saw blade cleaning device, etc.

Main technical parameters and configuration

Description	Unit	Specification
Sawing range	mm	Round 100-200 square 120-150
Carbide circular saw blade	mm	Φ630xt3.4
Spindle motor	Kw	30
Spindle speed	Rpm	30-90
Cut feeding mode		AC servo motor+ball screw+roller linear guide
Main clamp type		Hydraulic/vertical and horizontal clamping each
Saw blade debris removal device		Passive/active round wire brush
Gear gap compensation		Magnetic powder brake
Feeding drive mode		AC servo+ball screw
Feeding clamp mode		Hydraulic/Horizontal clamping
Front removal length	mm	20-30（no cutting head is optional）
Tail remain length	mm	150+α（α Not enough cutting length of one workpiece)
Single feeding cut length	mm	20-650
Allowable placing length	mm	3000-6500
Hydraulic drive motor	Kw	4
Hydraulic oil capacity	L	180
Body weight	Kg	8500
