CNC-150 High speed Metal Circular Saw Machine

Hotline： +86-533-5333776

Product Description

Equipment description

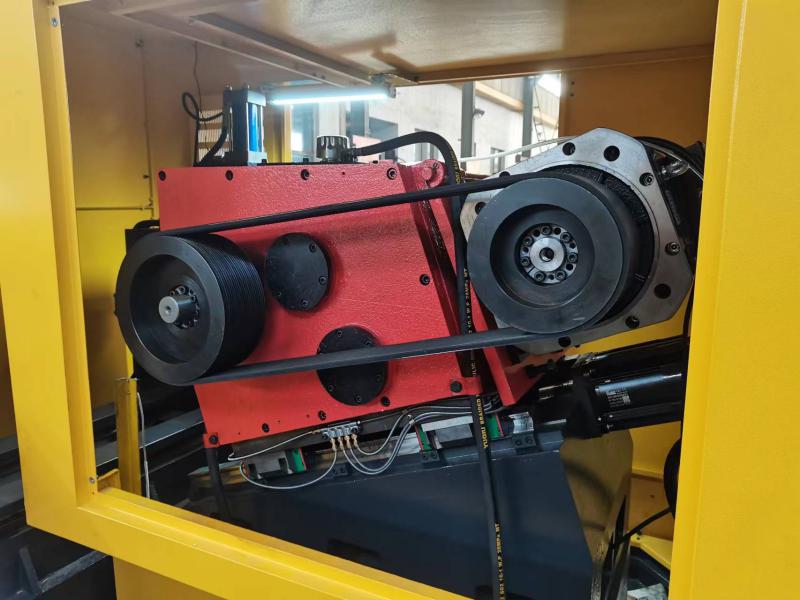

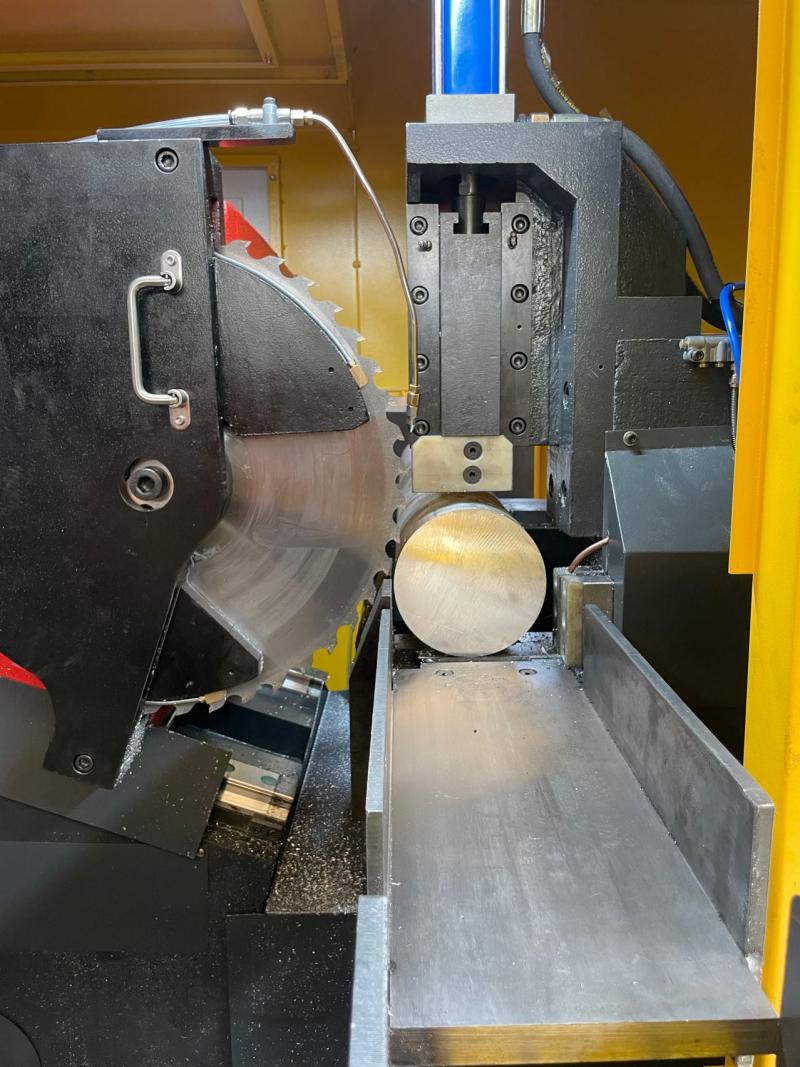

The CNC - 150 oblique push cutting circular saw is mainly composed of machine bed, power head, feeding system, clamping device, automatic feeding, material bearing frame, hydraulic system, electrical system, spray cooling system, saw blade automatic lubrication system, saw blade cleaning device, etc.

Main technical parameters and configuration

Description	Unit	Specification
Sawing range	mm	Round 50-150 square 50-105
Carbide circular saw blade	mm	Φ460xφ50xt2.7
Spindle motor	Kw	18.5（spindle servo）
Spindle speed	Rpm	30-160
Cut feeding mode		AC servo motor+ball screw+roller linear guide
Main clamp type		Hydraulic/vertical and horizontal clamping each
Saw blade debris removal device		Passive/active round wire brush
Gear gap compensation		Magnetic powder brake
Feeding drive		AC servo motor & ball screw
Feeding clamp		Hydraulic/ horizontal clamping
Front cut off length	mm	15-30(no cutting head is optional)
Tail remaining length	mm	100+α（α Not enough cutting length of one workpiece)
Single feeding cut length	mm	10-800
Allowable placing length	mm	2000-6500
Hydraulic drive motor	Kw	3.0
Hydraulic oil capacity	L	100
Body weight	Kg	5600
Body size	Mm	2500x2100x1920
