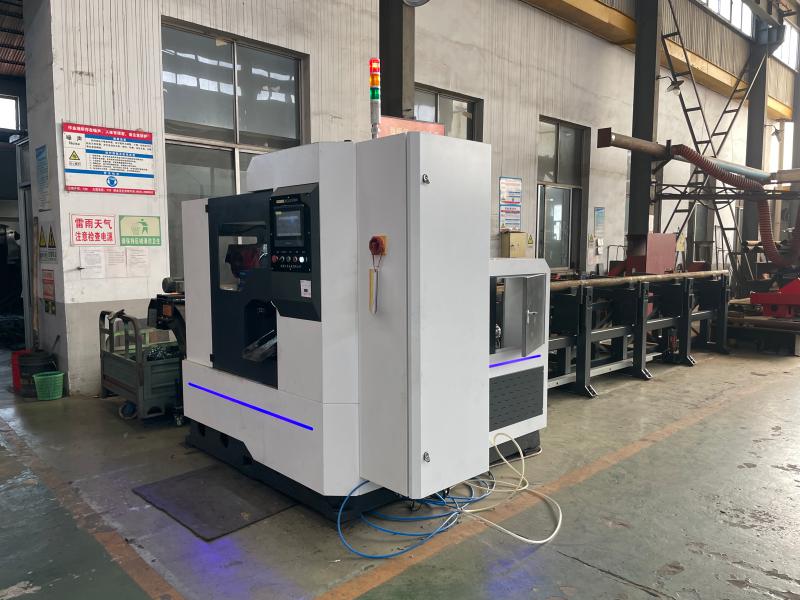

CNC-120 High speed Metal Circular Saw Machine

Sawing range

mm

Round  50-120   square  50-85

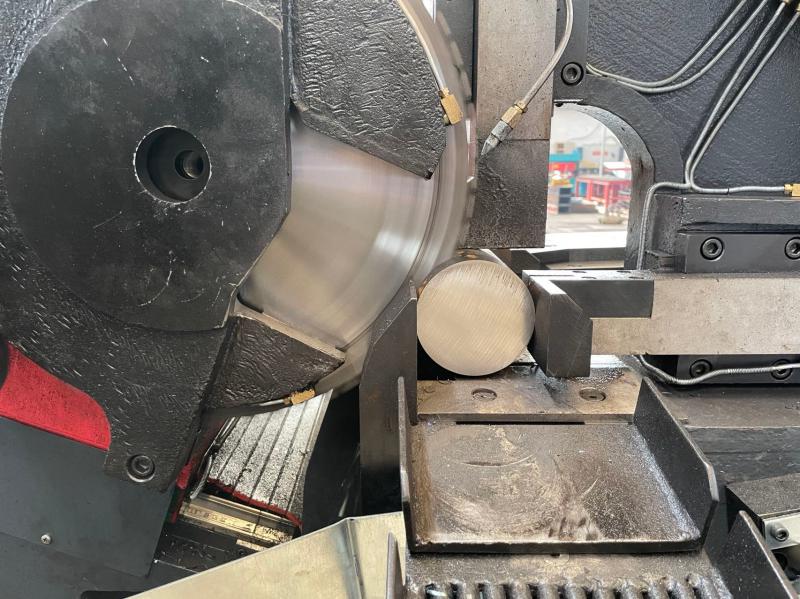

Carbide circular saw blade

mm

Φ415xφ50xt2.6

Spindle motor

Kw

15-4（spindle servo）

Spindle speed

Rpm

40-160

Cut feeding mode

AC servo motor+ball screw+roller linear guide

Main clamp type

Hydraulic type /vertical and horizontal clamping each

Saw blade debris removal device

Passive/active round wire brush

Gear gap compensation device

Magnetic powder brake

Feeding drive mode

AC servo motor+ball screw

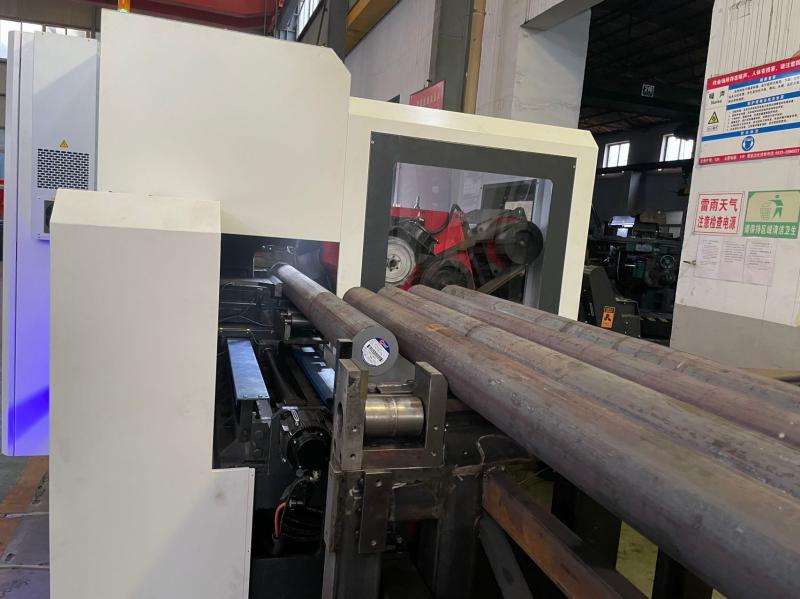

Feeding clamp

Hydraulic/horizontal clamping

Front cut-off length

mm

15-30（no front cutting is optional）

Tail remain length

mm

100+α（Not enough cutting length of one workpiece)

Sing feeding cut length

mm

15-700

Allowable placing length

mm

3000-6500

Hydraulic drive motor

Kw

2.2

Hydraulic oil capacity

L

100

Body size

Mm

2100x1960x1920

Body weight

Kg

4000
