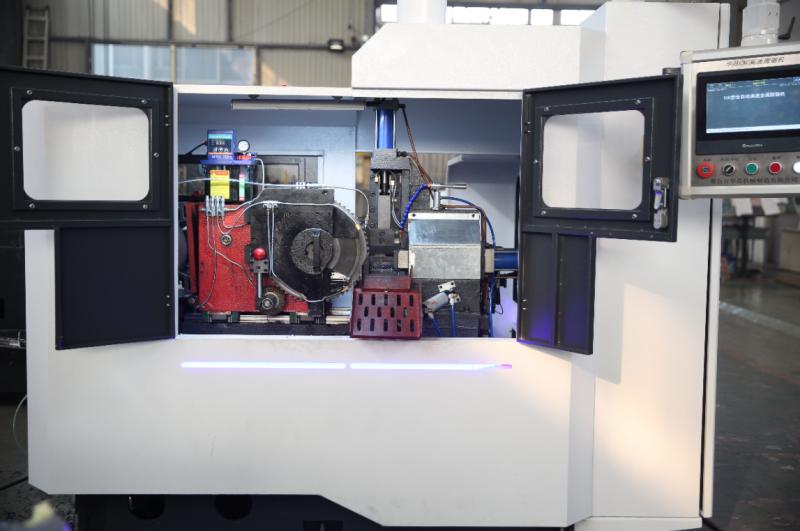

CNC-100 High speed Metal Circular Saw Machine

Hotline： +86-533-5333776

Product Description

Equipment description

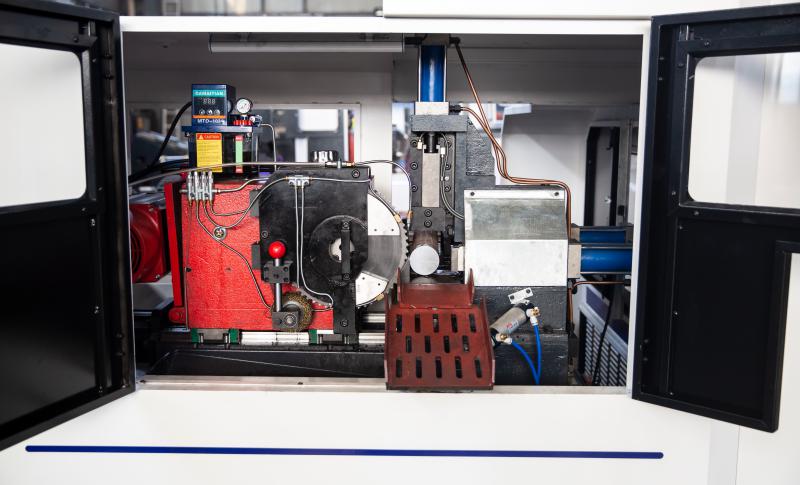

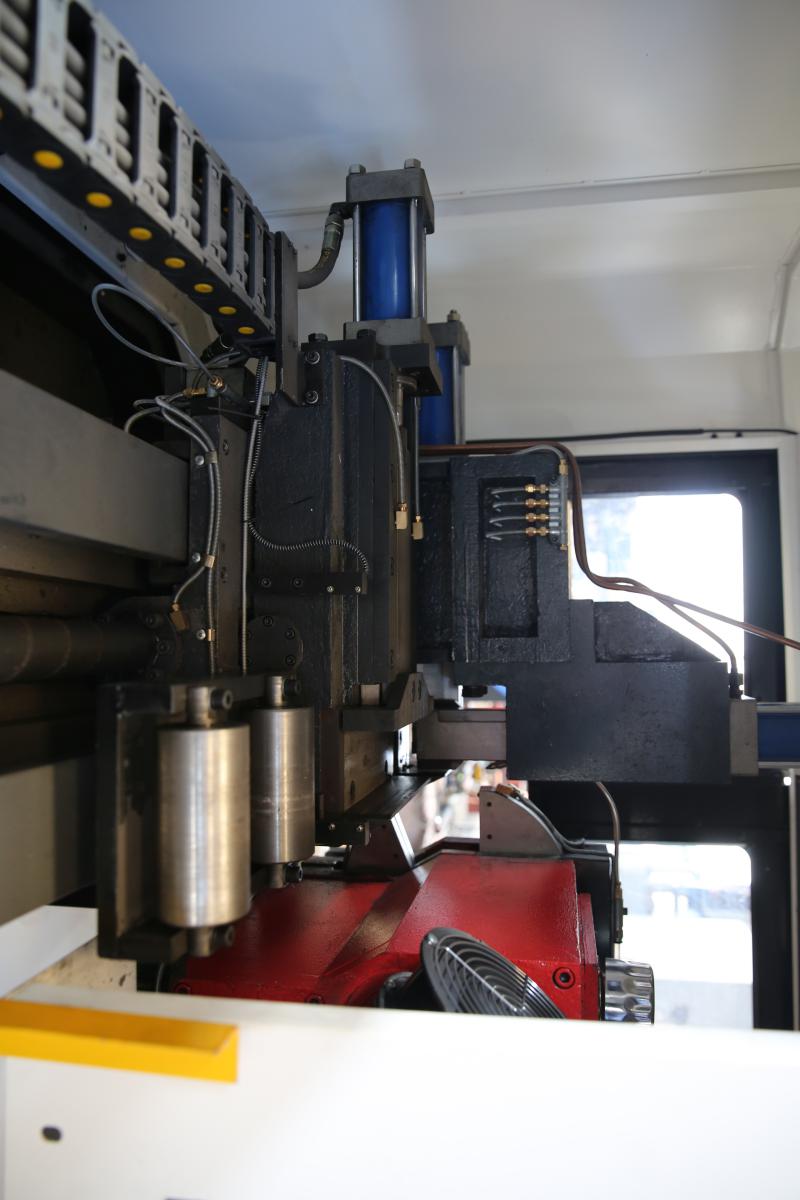

The CNC-100 push cutting circular saw is mainly composed of the machine bed, power head, feeding system, clamping device, automatic feeding, material bearing frame, hydraulic system, electrical system, spray cooling system, saw blade automatic lubrication system, saw blade cleaning device, etc.

Main technical parameters and configuration

Description	Unit	Specification
Sawing range	mm	round 30-100
Carbide circular saw blade	mm	Φ360xt2.6
Spindle servo motor	Kw	11-4（spindle servo）
Spindle speed	Rpm	40-160
Cut feeding mode		AC servo motor+ball screw/ Roller linear guide
Main clamp type		Hydraulic type /Horizontal & Vertical clamping
Single feeding length	mm	10-670 （super-length is customized）
Saw blade debris removal device		Passive/active round wire brush
Gear clearance compensation device		Magnetic powder brake
Feeding drive mode		AC servo motor+ball screw/ Roller linear guide
Feeding clamp mode		Hydraulic type /Horizontal clamping
Front removal length	mm	15-20(no cutting head is optional )
Tail remain length	mm	90+α（α Not enough cutting length of one workpiece)
Allowable placing length	mm	3000-6500
Hydraulic drive motor	Kw	2.2
Hydraulic oil capacity	L	100
Body size	mm	2000x1900x1920
Body weight	Kg	3200
