CNC-80 High speed Metal Circular Saw Machine

Hotline： +86-533-5333776

Product Description

Equipment description

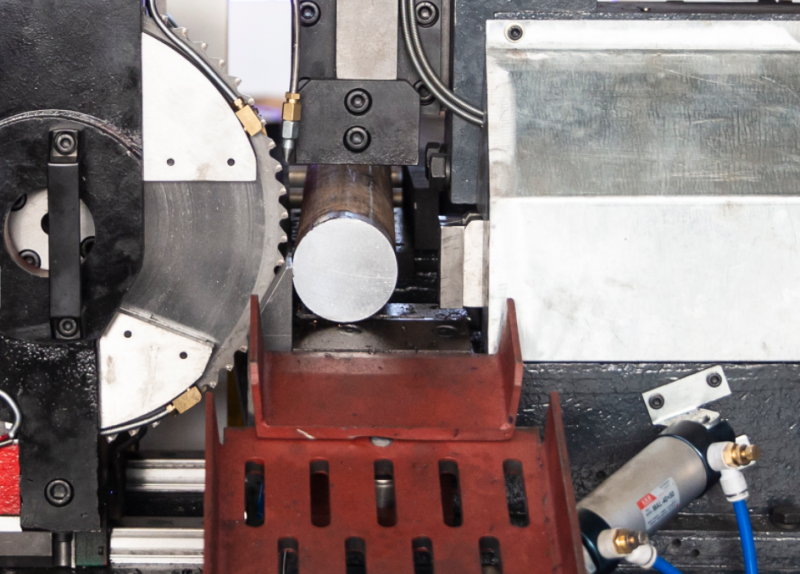

The CNC-80 Flat-push cutting circular saw is mainly composed of machine bed, power head, feeding system, clamping device, automatic feeding, material bearing frame, hydraulic system, electrical system, spray cooling system, saw blade automatic lubrication system, saw blade cleaning device, etc.

Main technical parameters and configuration

Description	Unit	Specification
Sawing range	mm	round 20-85 square 20-55
Carbide circular saw blade	mm	Φ315xt2.25
Spindle servo motor	Kw	7.5-4（spindle servo）
Spindle drive	Rpm	20-200
Cut feeding mode		AC servo motor+ball screw/Roller linear guide
Main clamp		Hydraulic/One set for vertical and horizontal clamping
One cut length	mm	5-500 (automatic multiple feeding can also be customized if the length is too long)
Saw blade debris removal device		Passive/active round wire brush
Gear gap compensation		Magnetic powder brake
Feeding drive		AC servo motor+ball screw
Feeding clamp		Hydraulic/ horizontal clamping
front removal length	mm	15-20（No cutting head is optional）
Remaining tail length	mm	90+α（αNot enough cutting length of one workpiece）
Allowable placing length	mm	3000-6500
Single feeding cut length	mm	10-670
Hydraulic drive motor	Kw	2.2
Hydraulic oil capacity	L	90
Body size	mm	2000x1800x1920
Body weight	Kg	3000
