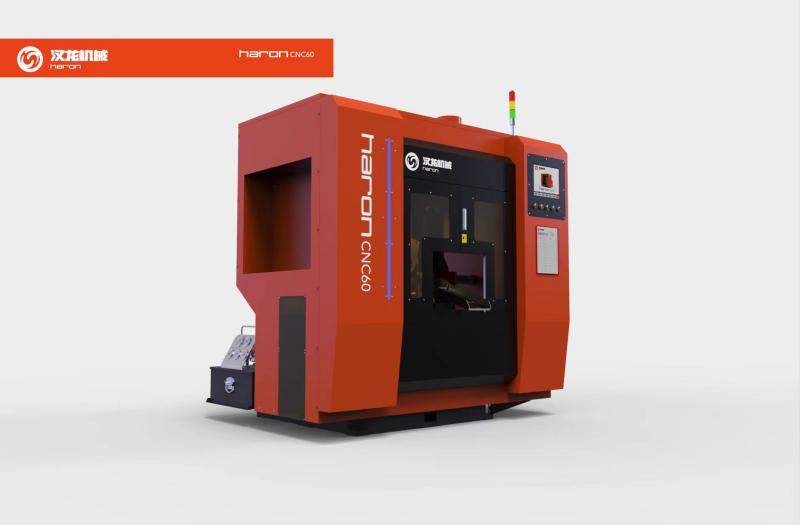

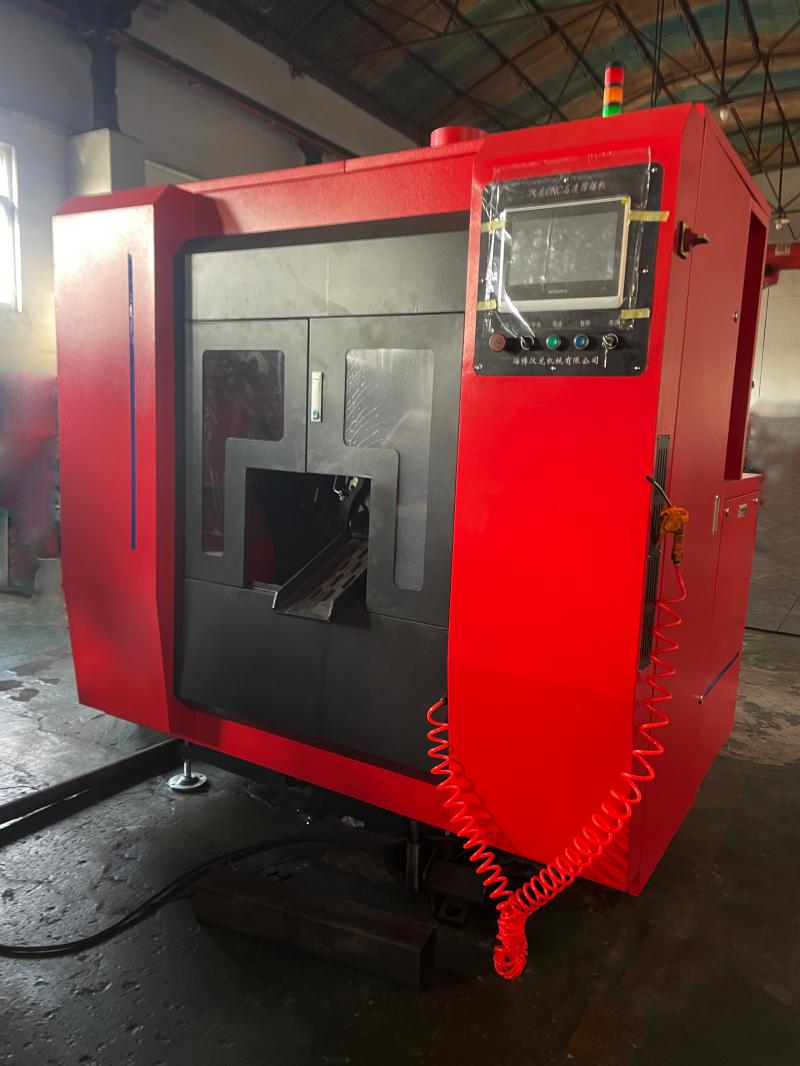

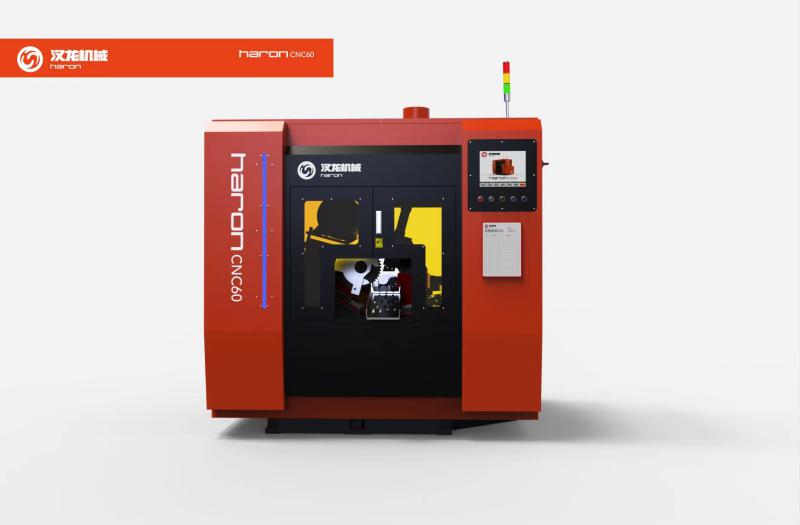

CNC-60 High speed Metal Circular Saw Machine

Hotline： +86-533-5333776

Product Description

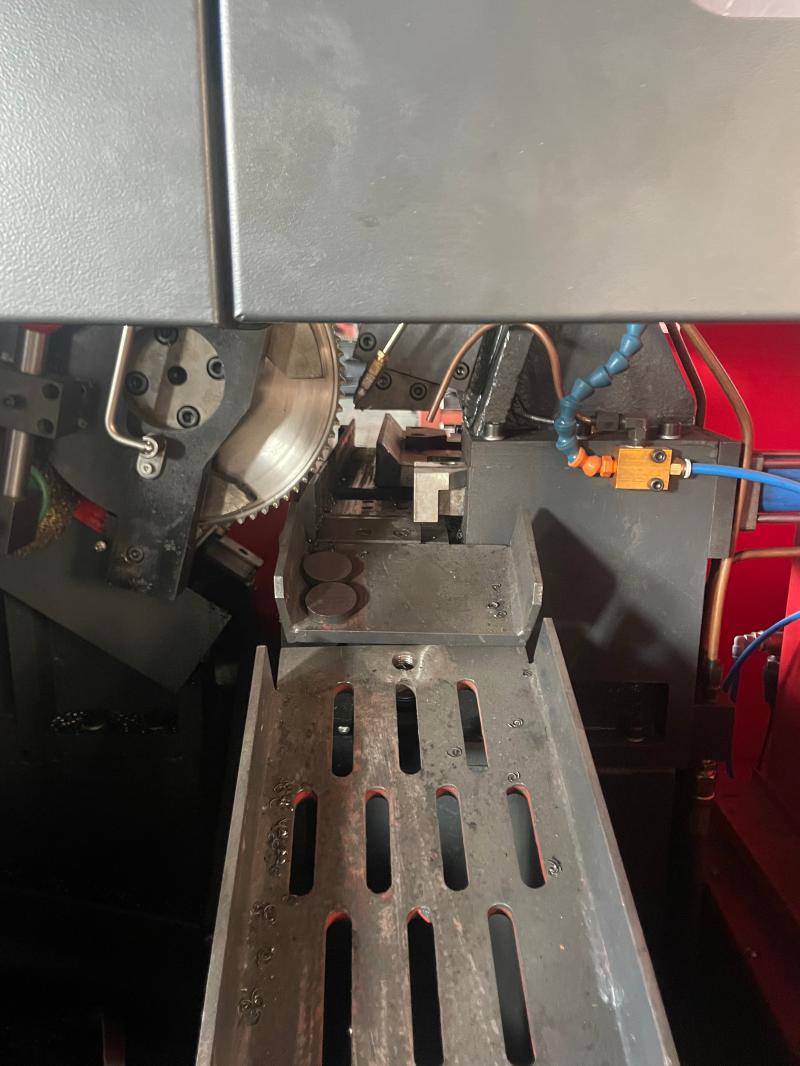

The CNC-60 high-speed metal circular saw is mainly composed of machine tool bed, power head, feeding system, clamping device, automatic feeding, material supporting frame, hydraulic system, electrical system, spray cooling system, saw blade automatic lubrication system, saw blade cleaning device, etc.

Main technical parameters and configuration

Description	Unit	Specification
Sawing range	mm	Round 10-60 square 10-60
Carbide circular saw blade	mm	φ250xt2.0
Spindle motor	Kw	7.5 Variable frequency
Spindle speed	Rpm	20-190
Cut feeding type		servo motor+ball screw
Main clamp		Hydraulic
One time feeding length	mm	5-500mm (automatic multiple feeding can also be customized if the length is too long)
Saw blade debris removal device		Passive/active round wire brush
Gear clearance compensation device		Magnetic powder brake
Feeding drive		servo motor+ball screw
Feeding clamp		hydraulic
Front cut-off length	mm	15-20（no cutting head is optional）
Remaining length of tail	mm	100+α（αNot enough cutting length of one workpiece）
One time feeding cut-off length	mm	10-600
Allowable placing length	mm	3000-6500
Hydraulic drive motor	Kw	1.5
Hydraulic oil capacity	L	60
weight	T	1.75（Body）
